SI Titan System – Height 2001-2400mm, Width 1051-1250mm

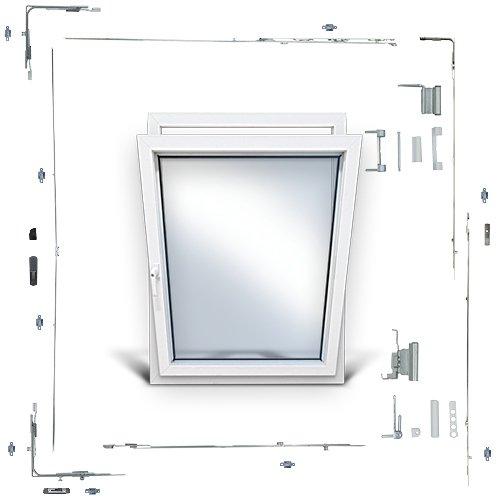

Titan is the latest tilt before turn system from Siegenia for use on UPVC, timber and aluminium windows. These complete sets have been designed for new installations or replacing old TBT systems fitted to sash windows with a standard 16mm eurogroove channel.

These models are to suit sash rebates between 2001-2400mm high and 1051-1250mm wide, with variants to suit left or right hung windows and 9mm or 13mm eurogroove axis. They also offer two types of hinges, surface fixed or for a more aesthetically pleasing look, concealed fixed hinges.

Drive gears are available with 7mm or 15mm backsets. Check the backset of the old drive gear if you’re replacing an existing system.

These systems are supplied as complete sets to suit particular window requirements. If you are unsure this is the correct set for you, check your sash dimensions are between that of the sash rebate width and height. Further details can also be found in the Specifications.

To view options of all the different sash rebate sets available click here

A window handle is not included in the set, see related products for options of recommended handles and the various finishes available.

Handing information is as follows:

When viewed from the inside, the handing is whichever side the HINGES are on. therefore:

looking at window from inside. handle on left hinges on right = RIGHT HANDED

looking at window from inside. handle on right hinges on left = Left HANDED
